Trinidad and Tobago INCINERATOR.Q&A

Question: Brick and refractories to withstand 1700°C (3092°F) Our std. high density castable refractory material is rated for 3000°F (1649°C). There is 3100°F material available but is considerably more expensive and labour intensive to work with. The point is why? The incinerator will never exceed 2200°F (actually 2000°F), so what is the value? TRHA Response: We have experienced temperature spikes in the past due primarily to lack of waste management at the various patient-care facilities and wish to have a machine that can handle flammables, aerosols etc. Question: Surface temperature of the external wall shall not exceed 80°C (176°F). This would most likely require dual casing. However, they do not specify what normal operating combustion chamber temperature must be. TRHA Response- Current operating temperatures are rated at 1000°C in the primary chamber and 1500°C in the secondary chamber. Question: “The burner configuration shall be designed to burn a minimum of 150 kg waste per cycle cycle.” What is to be considered a cycle, per hour, per day, ??? (assume this to mean per hour). TRHA Response: A cycle is how much time the machine would take under normal operating conditions to destroy 150kg of waste. This time is to be specified by the supplier. Question: How many hours per day will the system be operated? TRHA Response: The plan is to run for a minimum 16 hours with an 8 hour cool-down period. Question Wet scrubber: What performance specifications are to be met? It appears all they are suggesting is an acid gas scrubber. TRHA Response: Acid-gas and ceramic scrubbers appear to be standard. Questions Emissions monitoring: What emissions parameters are to be monitored? Response parameters: Testing Parameters – Stack Emission Particulate Matter Volatile Organic Compounds Sulfur Dioxide (SO2) Dioxins and Furans Oxides of Nitrogen (NOx) Lead (Pb) and its compounds Ozone Antimony (Sb) and its compounds Carbon Monoxide (CO) Arsenic (As) and its compound Fluorine (F) and its compounds Cadmium (Cd) and its compounds Acids and acid gases such as hydrogen chloride (HCl) Mercury (Hg) and its compounds Chlorine (Cl) and its compounds Heavy Metals (other) Hydrogen Sulphide For the ambient air quality testing, the following parameters shall be measured: Testing Parameters – Ambient Air Quality Carbon Monoxide (CO) Sulfur Dioxide (SO2) PM10 Nitrogen Dioxide (NO2) PM2.5 Ozone Question: Incinerator operation designed with the least of zero human intervention with the waste? Is a normal ram loader considered to meet this intent? TRHA Response- This option will be considered. All options submitted would be considered and evaluated on a case-by-case basis. Question “All metals used on construction of the incinerator and its attachments must be Stainless Steel 316 grade” It can be done but would increase the cost of the system exponentially. TRHA Response- Boiler quality material or some combination thereof will be considered on a case-by-case basis Question 480V, 3 ph, 60Hz?? (This would be great, but do they have this power actually available?) TRHA Response: As discussed during the site visit, the TRHA will provide this power to a panel at the site. The contractor is responsible for connections between this panel and the machine.

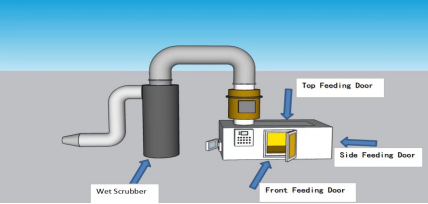

Tel: +86-25-8461 0201 Mobile: +86-13813931455(whatsapp/wechat) Website: www.hiclover.com Email: sales@hiclover.com Email: hicloversales@gmail.com Incinerator Items/Model HICLOVER TS200 Burn Rate (Average) 150-200 kg/hour Feed Capacity(Average) 200kg/feeding Control Mode PLC Automatic Primary Combustion Chamber 1500Liters(1.5m3) Internal Dimensions 1500x1000x1000mm Secondary Chamber 750Liters(0.75m3) Smoke Filter Chamber Wet Scrubber Feed Mode Manual/Auto. Voltage 380V Power 10.0Kw Burner Type Italy Brand Oil Consumption (kg/hour) 23 N.Gas Consumption (m3n/hour) *** Temperature Monitor Yes Temperature Thermometer Corundum Probe Tube, 1400℃Rate. Temperature Protection Yes Automatic Cooling Yes Automatic False Alarm Yes Automatic Protection Operator(APO) Yes System Testing Model Yes Time Setting Yes Progress Display Bar LCD Display Oil Tank 200L Oil Tank Stand Yes Liquid level Display Yes Feeding Door 800x600mm Feeding Door Location Default: Top Feeding Door Optional: Front/Side Feeding Door, Wet scrubber Chimney 10Meter Chimney Type Stainless Steel 304 1st. Chamber Temperature 800℃–1000℃ 2nd. Chamber Temperature 1000℃-1300℃ Residency Time 2.0 Sec. Gross Weight 12000kg(12.0Ton) External Dimensions 6000x1600x2500mm(without chimney/water tank) 1st. Chamber Composition Hot Face High alumina refractory brick Thickness: ≥115 mm Composition 55% of Al203 1750°C Grade 2nd. Chamber Composition Hot Face High alumina refractory brick Thickness: ≥115 mm Composition 75% of Al203 1790°C Grade Chamber Cold Face Material High Rate Refractory Ceramic Fiber Other Parts Hot Face Refractory Heavy Duty with steel fiber Burner operation Automatic On/Off Dry Scrubber Optional Wet Scrubber yes Top Loading Door yes Paint for outside face 250°C Grade Sealing Material Refractory Ceramic Fiber Upgrade Containerized Mobile Type none CE Certificate CE(2006/42/EC,2014/30/EU ISO Certificate ISO9001:2015 High-tech Enterprise Certificate Yes
